Robotic systems are celebrated for their precision, repeatability, and endurance. The servo motors, encoders, and controllers that drive them are spec’d carefully, validated thoroughly, and replaced on predictable schedules. The cable, by contrast, is often selected from a catalog, routed as an afterthought, and forgotten, until it fails.

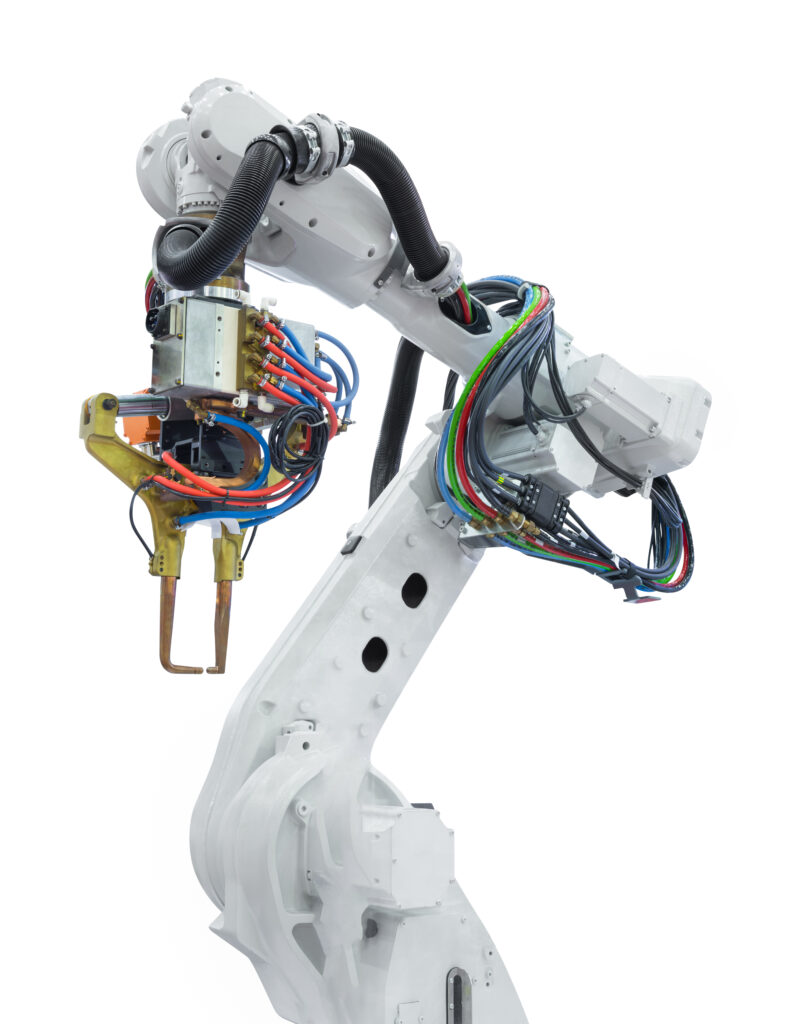

When it does, the consequences ripple fast. A single intermittent signal in a six-axis arm can halt an entire production cell. In UAV gimbals or automated guided vehicles, unexpected wire failure doesn’t just cost downtime, it costs confidence in the entire system. And in high-cycle industrial environments, “we’ll replace it when it breaks” isn’t a maintenance strategy. It’s an unplanned expense.
The engineering discipline that prevents this failure mode is called ‘high-flex life design’ and it starts long before the robot ever moves.
What “Flex Life” Really Means
Flexibility and flex life are often confused, but they measure different things.
‘Flexibility’ describes how easily a wire bends at a given moment, such as its stiffness, its minimum bend radius, how it feels in hand. A wire can be very flexible and still fail quickly under repeated motion.
‘Flex life’ describes how many times a wire can complete a bending cycle before its conductors, insulation, or jacket degrade to the point of functional failure. It’s a durability metric, not a handling metric and in robotic applications, it’s the metric that matters most.
Review the Robotics Section of the Pelican Wire website!
Robotic motion profiles create three distinct types of mechanical stress on wire:

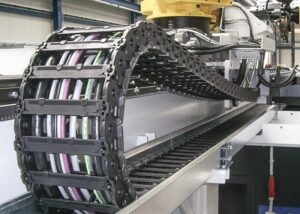

– ‘Continuous flex’: Wire that bends and rebounds repeatedly along a predictable path, such as in a cable carrier or drag chain
– ‘Torsional flex’: Wire that twists along its axis, common in rotating joints and wrist assemblies
– ‘Combined flex/torsion’: The most demanding condition, found in multi-axis arms, delta robots, and SCARA systems
Each stress mode degrades wire differently, and each demands different engineering solutions. A wire optimized purely for continuous flex may perform poorly under torsion. Designing for robotic motion control means understanding which stresses dominate and building the wire accordingly.
The Three Engineering Levers
High flex life is not a single material property. It’s the cumulative result of decisions made across three interdependent engineering dimensions.
1. Conductor Construction
The conductor is where flex-life failures almost always originate. Under repeated bending, individual metal strands experience cyclic stress. Over time, that stress causes work hardening, micro-cracking, and ultimately fracture, which is a process that accelerates with every strand that breaks, as remaining strands carry increasing load.
The engineering response is to ‘distribute stress across as many strands as possible’. This means:
– Replacing solid conductors entirely: Solid wire work-hardens rapidly under dynamic stress and has no place in continuous-flex applications
– Increasing strand count: More strands of finer gauge means each individual strand undergoes less stress per cycle, dramatically extending service life
– Selecting the right plating: Tin-plated copper, silver-plated copper, and bare copper each offer different performance profiles in terms of conductivity, oxidation resistance, solderability, and behavior under thermal cycling.
The relationship between strand count and flex life is not linear, it’s multiplicative. The jump from a 7-strand to a 19-strand to a 37-strand conductor doesn’t just add flex life. At fine enough gauges, it can extend service life across orders of magnitude of additional cycles.
2. Insulation and Jacket Selection
The conductor doesn’t flex in isolation, it flexes inside its insulation and jacket, and those materials must flex with it without cracking, delaminating, or generating fatigue stress back onto the conductor.
Common insulation materials each have trade-offs relevant to robotic environments:
– PTFE and FEP: Outstanding thermal and chemical resistance, excellent dielectric properties, naturally low friction in cable carriers, but stiffer than elastomeric alternatives
– TPE (Thermoplastic Elastomer): High flexibility, good abrasion resistance, excellent for continuous-flex and drag-chain applications; performs well across a broad temperature range

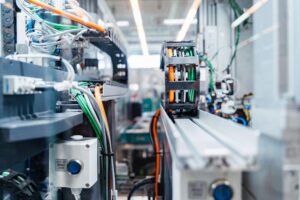

– PUR (Polyurethane): Exceptional abrasion and cut resistance, highly flexible, common in cable tracks; resists oils and coolants found in industrial environments
– Cross-linked materials: Enhanced thermal stability, better resistance to deformation under long-term mechanical stress.
In robotic applications, insulation selection must account for the full operating environment, not just the flex profile. Weld spatter, coolants, UV exposure, and temperature extremes can compromise insulation integrity independent of mechanical cycling. Getting this selection wrong doesn’t just reduce flex life. It can contaminate the signal path or create safety hazards.
3. Cable Geometry and Construction
The physical architecture of the cable, i.e., how conductors are twisted together, how they’re bundled, and how the overall cable is built has a profound effect on how bending stress is distributed across the structure.
Key geometric factors include:
– Lay length: the distance over which a stranded conductor completes one full twist. Shorter lay lengths improve flex life by distributing bending stress more evenly, though they also affect electrical characteristics and diameter.
– Stranding geometry: Concentric, bunch, and rope-lay constructions each behave differently under flex and torsion; the optimal choice depends on the specific motion profile.
– Core configuration: In multi-conductor cables, how individual conductors are arranged and cushioned against each other determines whether they migrate, bind, or wear against one another under repeated motion.
These geometric decisions are the reason high-flex robotic wire cannot be fully optimized using catalog specifications. The motion profile, bend radius, environmental conditions, and conductor count of a given application interact in ways that require engineering judgment, not just part selection.
Designing for the Long Run
When wire is being specified for robotic motion control, the most important questions are rarely about the wire itself. They’re about the application:
– What is the minimum bend radius the wire will be subjected to in service?
– Is the motion unidirectional, or does the wire reverse direction under load?
– Is torsion involved and if so, how many degrees of rotation per cycle?
– What is the expected cycle count over the product’s service life?
– What temperatures, chemicals, or physical abrasion will the wire encounter?
The answers to these questions drive every downstream engineering decision. A wire designed without them may work, but likely only for a while. But a wire designed ‘with’ them can be engineered to outlast the machine it powers.
This is the core of what Pelican Wire means by ‘Custom Engineered Wire Solutions’. Rather than pointing customers toward an existing SKU, our engineering team works to understand the motion profile, the environment, and the performance requirements. Only then, we build wire to match. The result is a cable that doesn’t become a maintenance headache six months into production.
Built for Robotics. Engineered for Your Application.
High-flex life wire is not a product category. It’s an engineering outcome. One that depends on the right conductors, the right insulation, and the right geometric construction working together for a specific application.
Pelican Wire manufactures custom wire and cable for robotic motion control, UAV systems, automated machinery, and industrial automation. Whether you need a single-conductor high-flex lead or a complex multi-conductor assembly built to survive millions of cycles, our team can engineer a solution to your exact specification. CLICK HERE to watch a brief Plant Tour & Capabilities Overview.
Ready to talk through your motion-control wire requirements? Contact our engineering team for a custom consultation, ‘no catalog required.’
ARTICLE FAQ’s:
> Q: What is high-flex life wire?
> A: High-flex life wire is conductor and cable engineered to withstand repeated bending cycles without failure — essential in robotic arms, cable carriers, and any application involving continuous motion.
>Q: What’s the difference between flexibility and flex life?
>A: Flexibility describes how easily a wire bends; flex life measures how many times it can bend before degrading. Both matter in robotics, but flex life determines long-term reliability.
>Q: What insulation is best for continuous-flex robotic applications?
>A: It depends on the full operating environment. TPE and PUR are common in drag-chain and cable-carrier applications; PTFE and FEP excel where thermal or chemical resistance is paramount. Pelican Wire engineers help select the right material for your specific conditions.
>Q: Can Pelican Wire build wire to a custom flex-life specification?
>A: Yes. Custom strand count, gauge, insulation, and cable geometry can all be engineered to your motion profile and cycle requirements.
> Q: Can Pelican Wire build wire to a custom flex-life specification?
> A: Yes. Custom strand count, gauge, insulation, and cable geometry can all be engineered to your motion profile and cycle requirements.
